20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding

Brand Name : Dawson

Model Number : ABLB90-30L

Certification : CE

Place of Origin : Jiangsu Zhangjiagang

MOQ : 1 Set

Price : US $52,400-65,800/ Set

Payment Terms : L/C, T/T

Supply Ability : 10-20Set/month

Delivery Time : 35-45 Work days

Packaging Details : Packing in wooden cases

Die Head : Single Head or Double Head

Max. Product Volume : 25L

Sutiable : 20L 25L Bottle

Clamping Force : 270 Kn

Heating Zone : 4 Aluminum Heater

Summarize : High-Grade Alloy Steel, Center Feeding

Extruder Motor : 30kw Siemens Motor

Specification : ABLB90-30L

Application : Bottles, Jars, Jerry Cans, Gallons, Containers

Auto-Deflashing : with Auto-Deflashing

Clamping System : Toggle Type Clamping System

Mould : One Cavity or Two Cavity

Transport Package : Film Packing

Contact Now



20l 25L 30 liters plastic jerry can single station extrusion moulding making machine hdpe bottle jerrycan blow molding


Automatic Extrusion Blow Molding Machine ABLB90-30L



blow molding machine Extrusion Blow Molding Injection blow molding machine PET blow molding machine  injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China


  1. Product: 20L / 25L HDPE Jerry cans
  2. Power supply: 380/220v 50/60 Hz Tri-phase
  3. Output capacity:20~25L: 50~60 pcs/h (1200~1400 pcs/day)
  4. Layer: Single layer
  5. Lever line system: Available
  6. Parison control: MOOG 100 points
  7. Max volume: 25L (Single die head)





Machine Model Max. Bottle size Production forecast

20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding

ABLB90-30L

Single Station/

1 Head

 20L 48~50 BPH







Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 25L
Output capacity 50~60 PCS/H
Size 4.4×3.4×3.6(M)
Weight 11.3T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 ∮80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
  Heating Zone 4 Aluminum Heater Automatic heating
  Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling
Extrusion system
Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth 200
Extruder Motor 30kw SIEMENS MOTOR
Clamping system
  Summarize High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
Clamping force 270 KN
Distance between platens 450~950mm
Mould template 680× 660

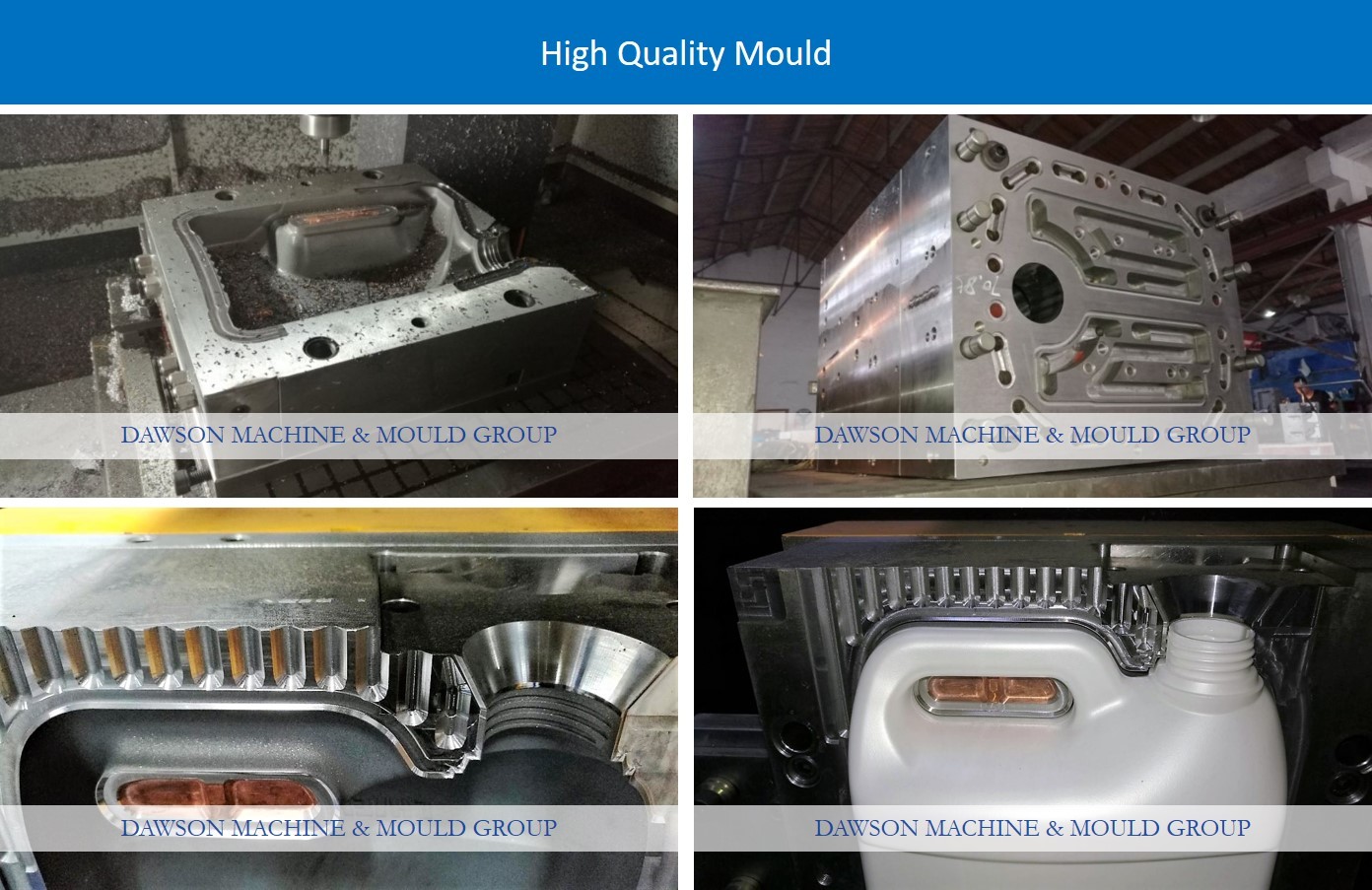

Mould material S50C/Aluminium with beryllium copper
Electricystem
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)

Operate interface Touch screen, automatic self-diagnose alarm system
Parison control MOOG 100 points controller
Temperature control Automatic temperature control module
Movement control TECH-2/Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
TOTAL rated power 67kw
Average power consumption 33 kw
Inverter Delta
Hydraulic system
Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor 11kw motor (380V/220V,50/60HZ)
Oil pump double vane pump
Valves Imported oil pump valves and connections
YUKEN
Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)
Cooling system Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6~0.8Mpa
Air displacement 2.2 M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 100L/min
Water pressure 0.4-0.6MPa







20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding





Technical Parameters
Name Units ABLB90-30L
Max.product volume L 30L
Screw diameter MM 90
Screw drive power KW 10
Output of HDPE KG/H 130
Oil pump drive power KW 11
Clamping force KN 270
Max.size of mold MM 680× 660
Template size MM 290×320
Mold stroke MM 450-950
Size of machine L×W×H 4.4×3.4×3.6
Weight of machine TON

11.3





20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding



20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding


20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding
20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding
20l 25L 30 Liters Plastic Jerry Can Single Station Extrusion Moulding Making Machine Hdpe Bottle Jerrycan Blow Molding



● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783

● Skype:guo.chenliang
● E-mail: jjeasy@dawson-plastic.com
jjeasyguo@hotmail.com
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA
